Description

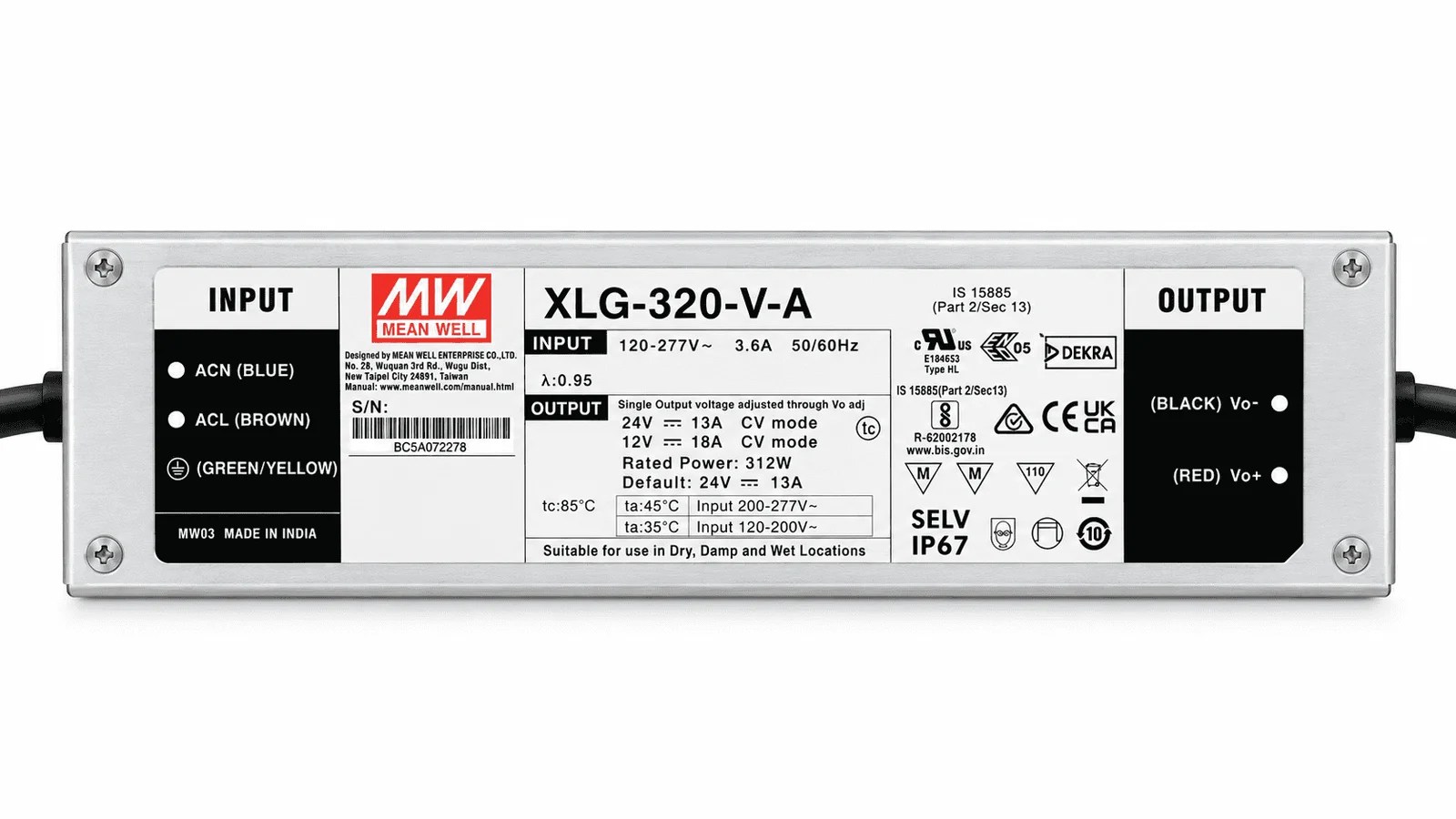

The high-performance, IP67-rated Mean Well XLG-320-V-A LED Driver is made for dependable outdoor and industrial lighting applications.
Adjustable constant-voltage output with 24V/13A and 12V/18A is supported.a 312W rated power operating mode.
For normal use in dry, humid, and wet environments, its sturdy metal casing offers protection.
Technical Specifications – Mean Well XLG-320-V-A
Specification | Details |
|---|---|
| Model | XLG-320-V-A |
| Brand | Mean Well |
| Rated Power | 312W |
| Driver Type | Constant Voltage (CV) |
| Input Voltage | 120–277V AC |
| Input Current | 3.6A |
| Frequency | 50/60Hz |
| Power Factor | 0.95 |
| Output Voltage | 12V / 24V DC |
| Output Current | 18A @ 12V / 13A @ 24V |
| Default Output | 24V DC / 13A |
| IP Rating | IP67 |
| Dimming | Not specified |
| Operating Temperature (Ta) | Up to 45°C* |
| Case Temperature (Tc) | 85°C |
| Application | Dry, Damp & Wet Locations |
| Housing | Metal / Aluminium |
| Protection | IP67 environmental protection |
