Description

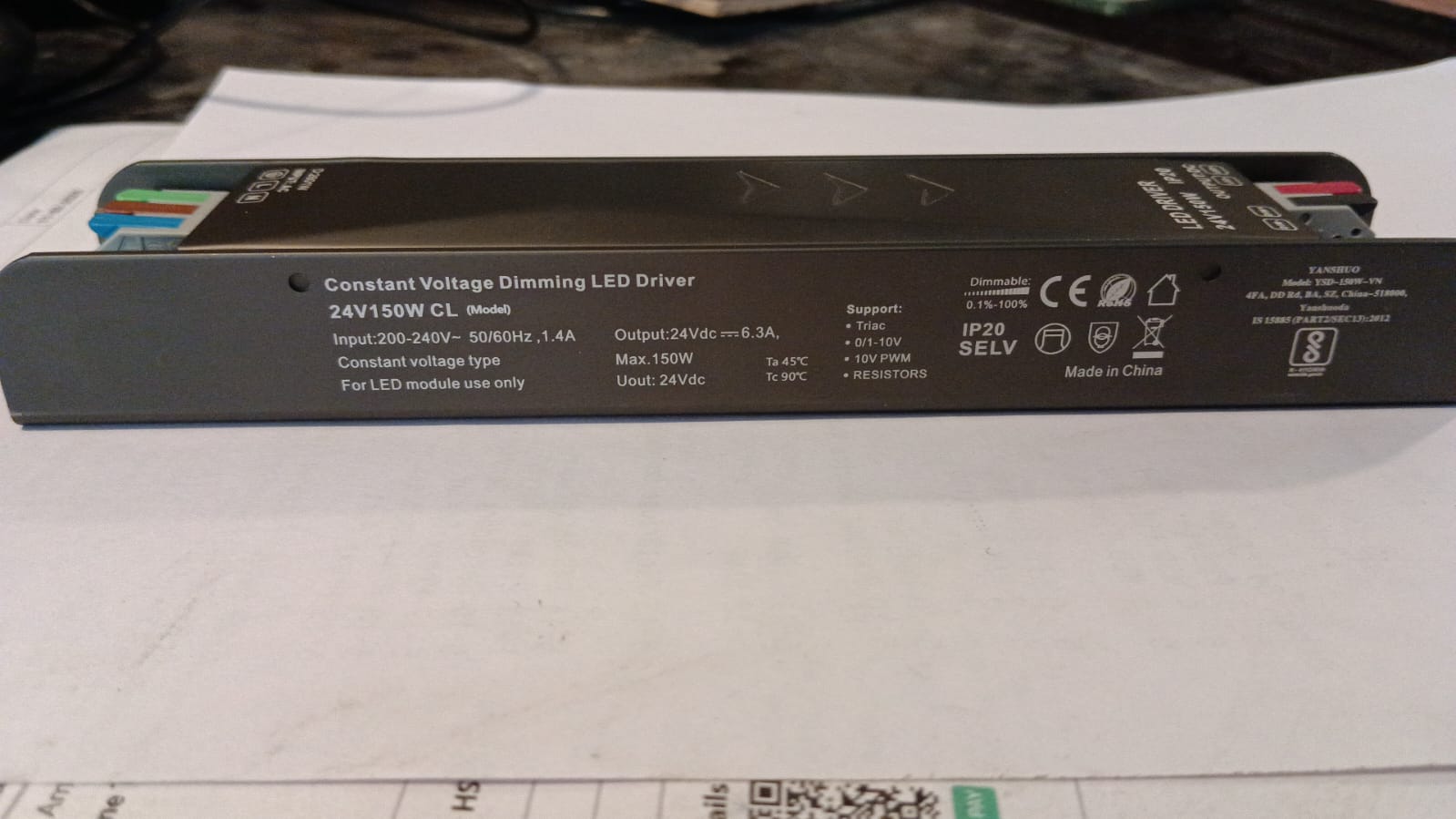

24V 150W Dimmable LED Driver
✔ Constant Voltage Output – 24V DC
✔ Max Power – 150W (6.3A Output Current)
✔ Wide Input Voltage – 200-240V AC, 50/60Hz
✔ Multi Dimming Support – Triac, 0/1-10V, 10V PWM, Resistor Dimming
✔ Smooth Dimming Range – 0.1% to 100%
✔ IP20 Rated – Indoor Applications
✔ SELV Certified – Safe Low Voltage Output
✔ Compact Slim Metal Housing Design
✔ Ideal for LED Strip Lights, Cove Lighting & Architectural Lighting
Parameter | Specification |
|---|---|
Input Voltage | 200-240V AC |
Frequency | 50/60Hz |
Input Current | 1.4A |
Output Voltage | 24V DC |
Output Current | 6.3A |
Maximum Power | 150W |
Dimming Types | Triac / 0-10V / 10V PWM / Resistor |
Dimming Range | 0.1% – 100% |
IP Rating | IP20 |
Operating Temp (Ta) | 45°C |
Case Temp (Tc) | 90°C |
| Application | LED Module Use Only |
