| Brand | AIDimming |
| Model | PE-L12DCA40 |

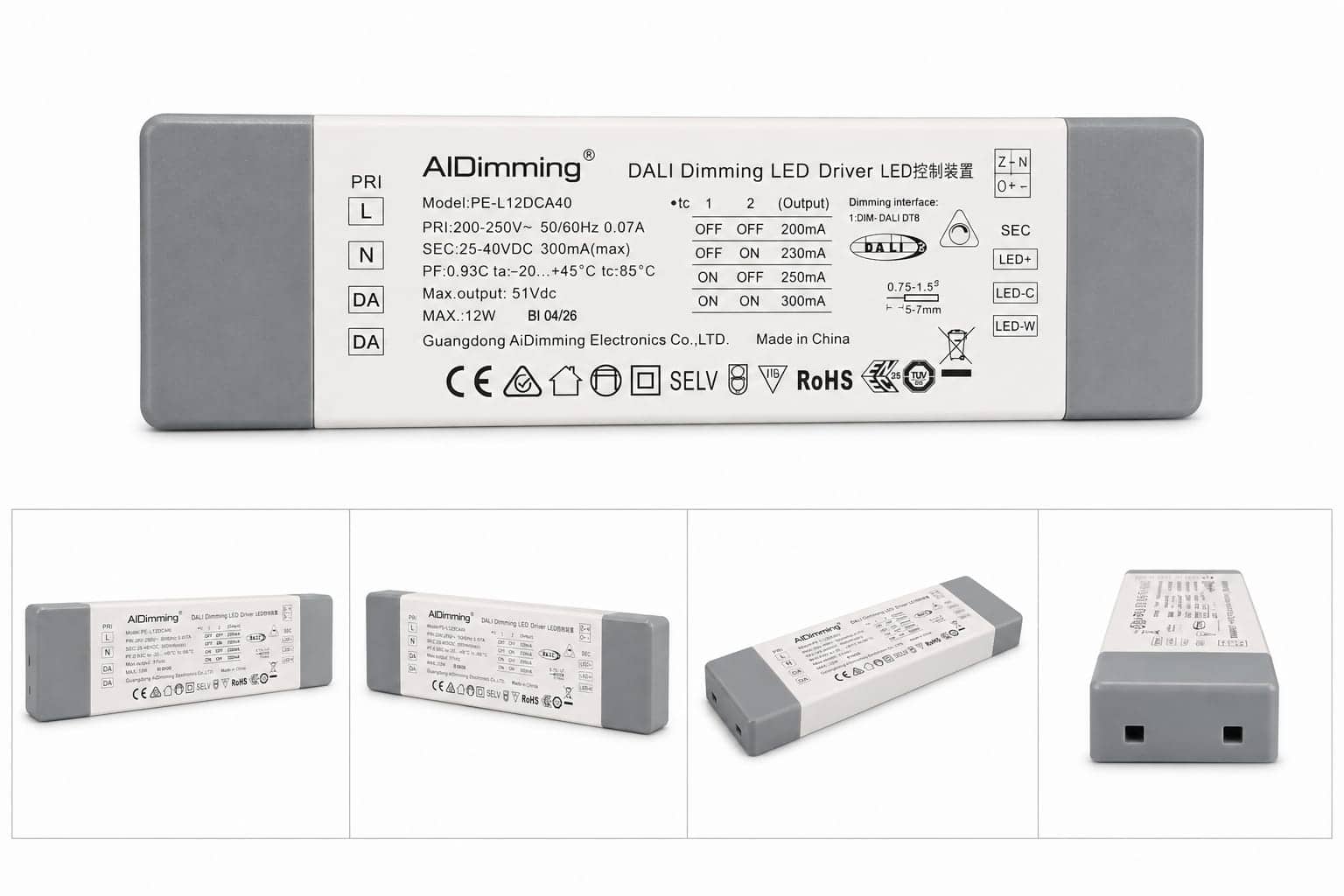

| Product Type | DALI DT8 Dimming LED Driver |
| Input Voltage (PRI) | 200–250V AC |
| Frequency | 50/60 Hz |
| Input Current | 0.07 A |
| Power Factor (PF) | 0.93 |
| Output Voltage (SEC) | 25–40V DC |
| Maximum Output Current | 300 mA (Selectable) |
| Selectable Output Current | 200 mA / 230 mA / 250 mA / 300 mA (DIP Switch) |
| Maximum Output Voltage | 51V DC |
| Rated Output Power | 12 W Max |
| Dimming Protocol | DALI DT8 |
| Operating Temperature (ta) | -20°C to +45°C |
| Case Temperature (tc) | 85°C Max |
| Output Terminals | LED+, LED-C, LED-W (Tunable White) |
| Input Terminals | L, N |
| DALI Terminals | DA, DA (Non-polarity) |
| Protection Class | Class II, SELV |
| Certifications | CE, RoHS, ENEC, TÜV |
| Country of Origin | Made in China |
| Manufacturer | Guangdong AIDimming Electronics Co., Ltd. |
