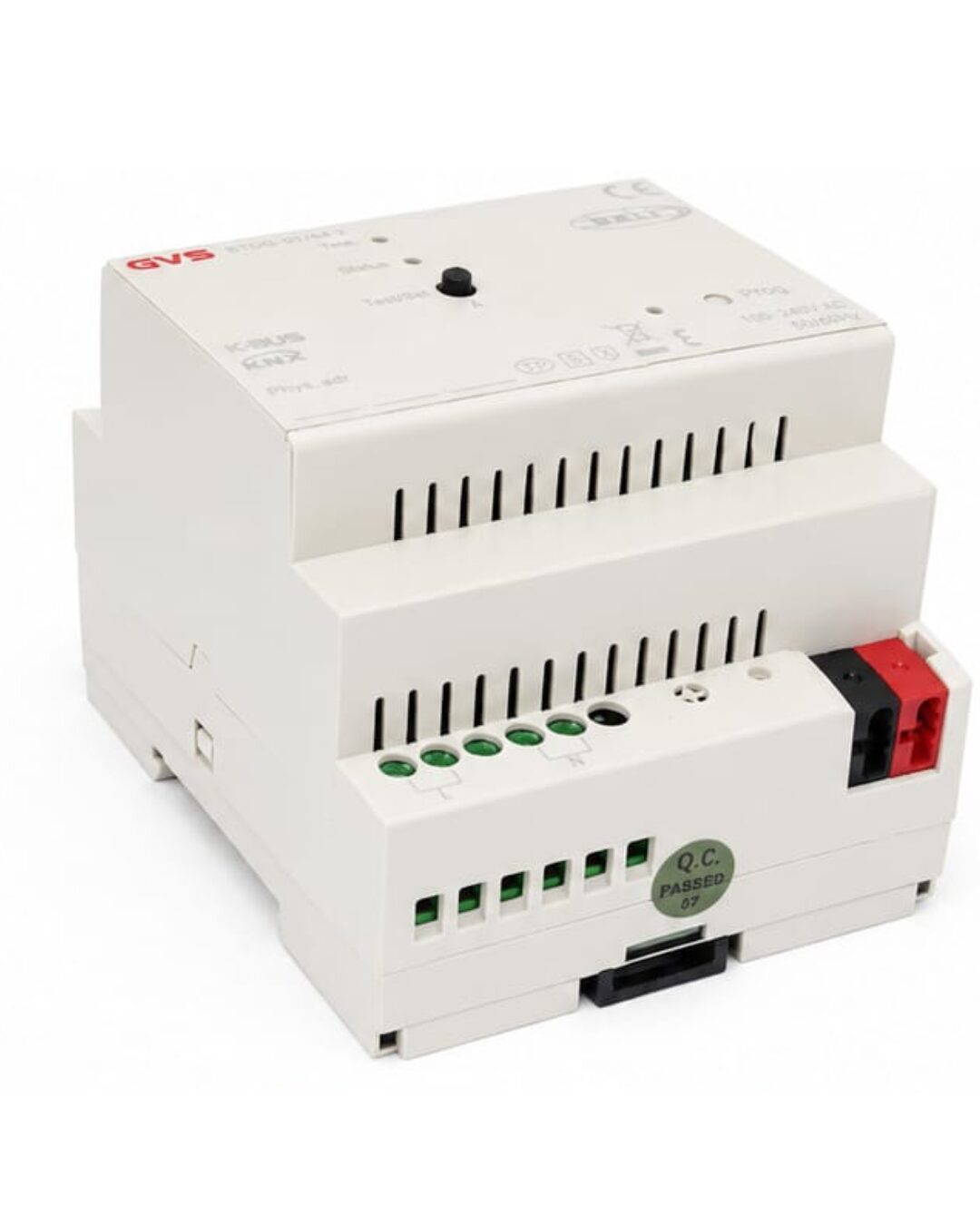

Description

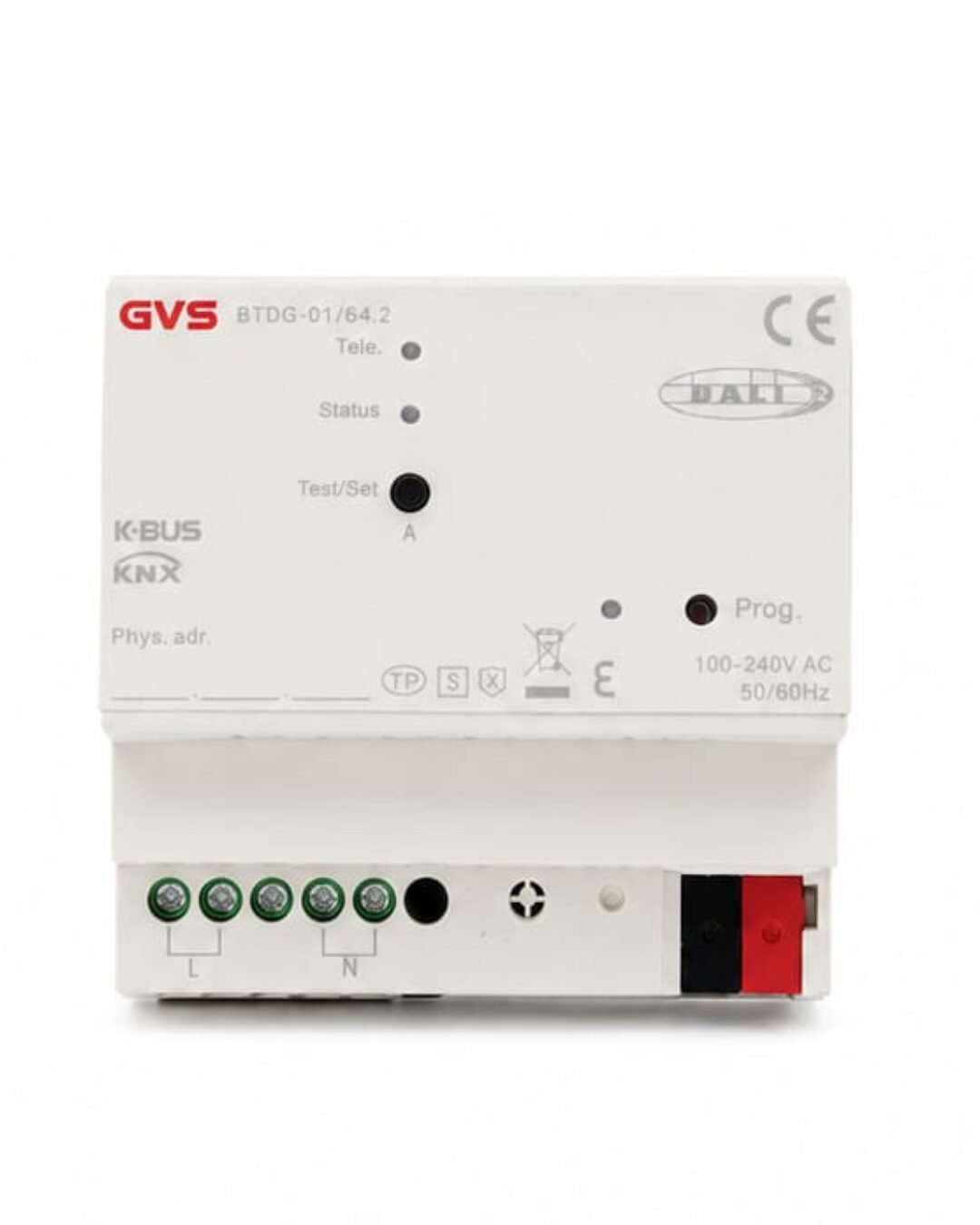

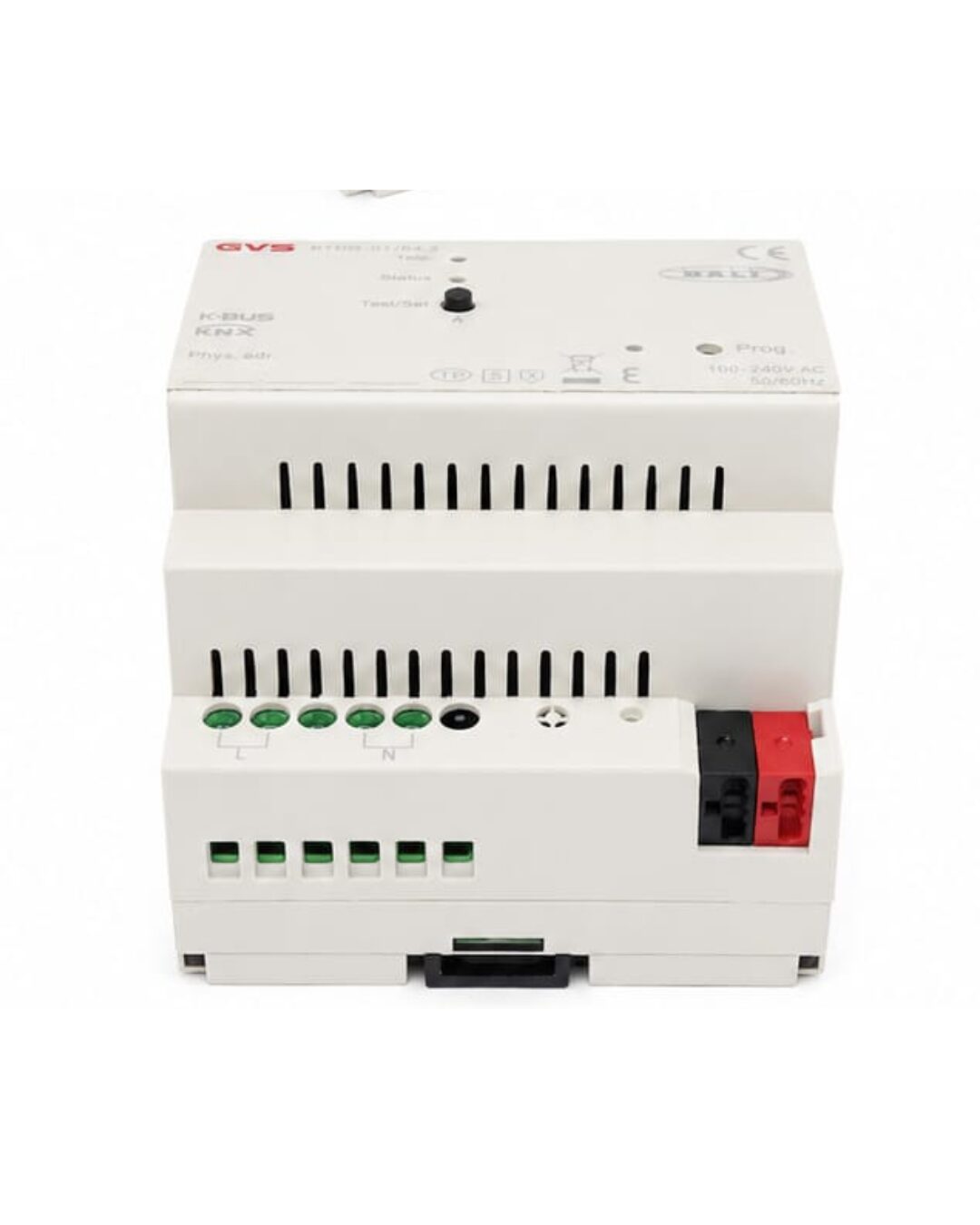

DALI Output negative pole

DALI Output positive pole

Red LED indicates programming the physical address; Green LED flashing indicates the application layer works normally.

Programming button

LED (Tele.): Flashing indicates initializing DALI bus; Flashing during communication indicates telegram transmission on the DALI bus; always ON indicates DALI bus

initialization completed

LED (Status): ON indicates the

channel output is on, OFF indicates the

channel output is off. But it is only applicable to the indication for the

channel button A, B operation and the

broadcast object switch control;

LED flashing indicates that the DALI KNX Dali 2 Gateway 2-Fold

gateway is initializing

Test/Set button: A short operation (<5s), for ON/OFF all DALI devices of a channel to test unconnected DALI devices; a long operation(>5s), for re-initializing DALI bus

Auxiliary power supply terminals

KNX bus connection terminal

PARAMETERS

Power Supply

Bus voltage

21~30V DC, via the KNX bus

Bus current

9.5mA/30V DC; 11.0mA/24V DC

Bus consumption

<285mW

Auxiliary Supply

Voltage

100~240V AC, 50/60Hz

Current

<55mA, at 220 V AC

DALI Output

Consumption

<12W, at 220 V AC

1/2 Channel

Current

Max.64 DALI devices per channel

Max.8 DALI sensors per channel

Guaranteed supply:160mA

Maximum supply: 250mA

Note: The number of DALI operating devices and DALI sensors must be designed, so that the total current consumption of 160mA per DALI system is not exceeded. KNX Dali 2 Gateway 2-Fold

Connections

KNX

Load voltage

15~19V DC

Bus connection terminal(Red/Black)

Operation and display

Inputs and output

Programming

button and Red LED

Green LED flashing

Using screw terminals

For assigning the physical address

For indicate application layer running normally

For indicate DALI bus initializing and telegram transmission

LED (Tele.)

For indicate channel broadcast switch control status, or initializing

LED (Status)

Test/Set button

For ON/OFF channel output and re-initializing DALI bus

Temperature

Operation

-5°C … +45 °C
