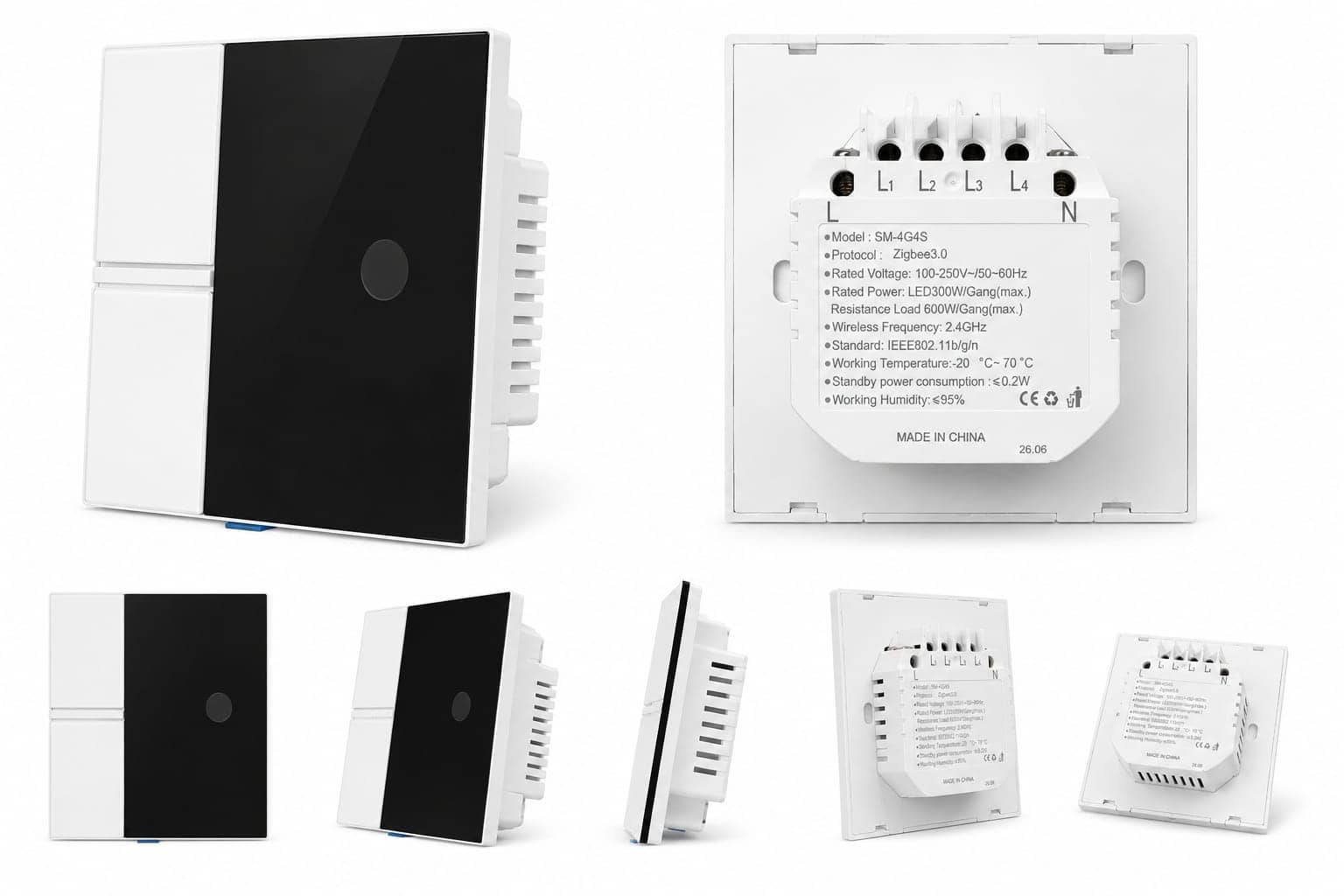

Features of the Smart Zigbee Touch Wall Switch
Type of Product: Smart Touch Wall Switch
Model: SM-4G4S
Zigbee 3.0 protocol
Type of Control: Two-Gang Touch Switch
Voltage input: 100–250 V AC
50/60 Hz is the frequency
LED Rated Power: 300W maximum per gang
Maximum Resistive Load per Gang: 600W
2.4GHz is the wireless frequency.
IEEE 802.11 b/g/n is the wireless standard.
Terminals: L1, L2, L3, L4, N (Neutral), and L (Live)
Touch Panel: High-quality Tempered Glass
Consumption of Standby Power: ≤0.2W
Temperature range for operation: -20°C to +70°C
≤95% RH is the operating humidity.
Type of Installation: Standard Flush Wall Mount
Color: White and Black
Material: Flame-Retardant PC Body + Tempered Glass Front
Origin: China
Included with the package
1 x Smart Zigbee Touch Wall Switch
1. User Guide
Smart Switch
